Description

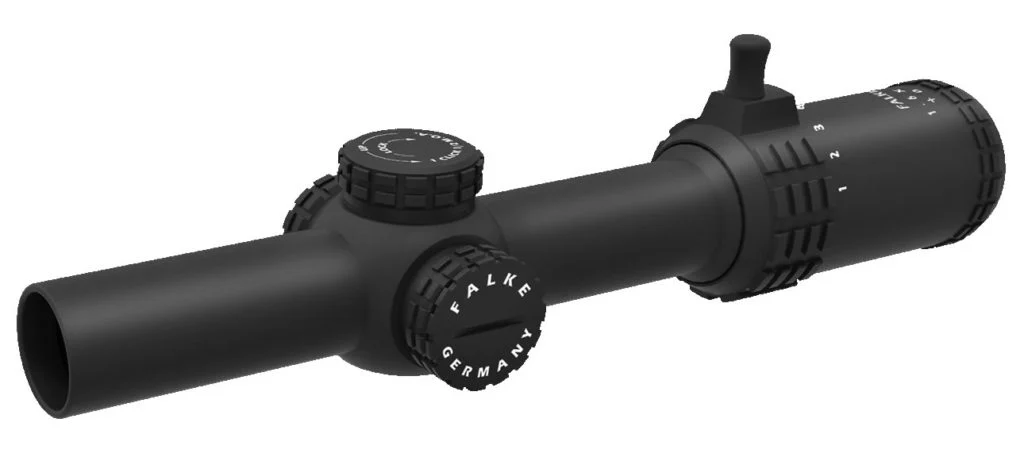

The compact scope with the popular L4 illuminated reticle.

Hunters appreciate the wide field of view, especially for driven hunts.

The scratchproof surface, nitrogen filling and the 1/2 MOA click adjustment protected by solid screw-on caps make it the ideal companion for demanding hunting situations.

Model Number 1-6×24 L4
Magnification Value 1x-6x
Objective Lens Diameter (In) 0,94
Body Tube Diameter (In) 1,18
Length (In) 10,85
Weight (oz) 17,99
Parallax Setting 100 yd
Windage Adjustment Range 120 MOA
Elevation Adjustment Range 120 MOA
Click Value 1/2 MOA
Eye Relief (In) 4,33-3,46
Field of View (FOV) (ft/100 yd) 100,4-16,6
Focal Plane Second Focal Plane
Diopter Compensation +2 ~ -3
Additional information
Weight 0.086 kg
Dimensions 39.5 × 12 × 9.3 cm
Specifications

Model Number

1-6×24 L4

Magnification Value

1x-6x

Objective Lens Diameter (mm)

24mm

Body Tube Diameter (mm)

30mm

Length (cm)

27.6 cm

Weight (g)

510 g

Parallax Setting (m)

91.4 m

Windage Adjustment Range

120 MOA

Elevation Adjustment Range

120 MOA

Click Value (MOA)

1/2 MOA per click

Eye Relief (mm)

110 – 88 mm

Field of View (FOV) (m at 100 m)

30.6 – 5.06 m at 100 m

Focal Plane

Second Focal Plane

Diopter Adjustment:

+2 to -3
